The other day I was asked how does ConfigMgr product lifecycle details get updated? You know the details from the Product Lifecycle dashboard in the console. I have to admit that I don’t know that off the top of my head. But I knew that I saw it within the logs. I agreed to track it down as it was not something that I could find it 5 minutes. Plus, we had other things to address during our call. So, this will show you how to confirm that your Configuration Manager (ConfigMgr) Product Lifecycle are being downloaded from Microsoft.

ConfigMgr Product Lifecycle

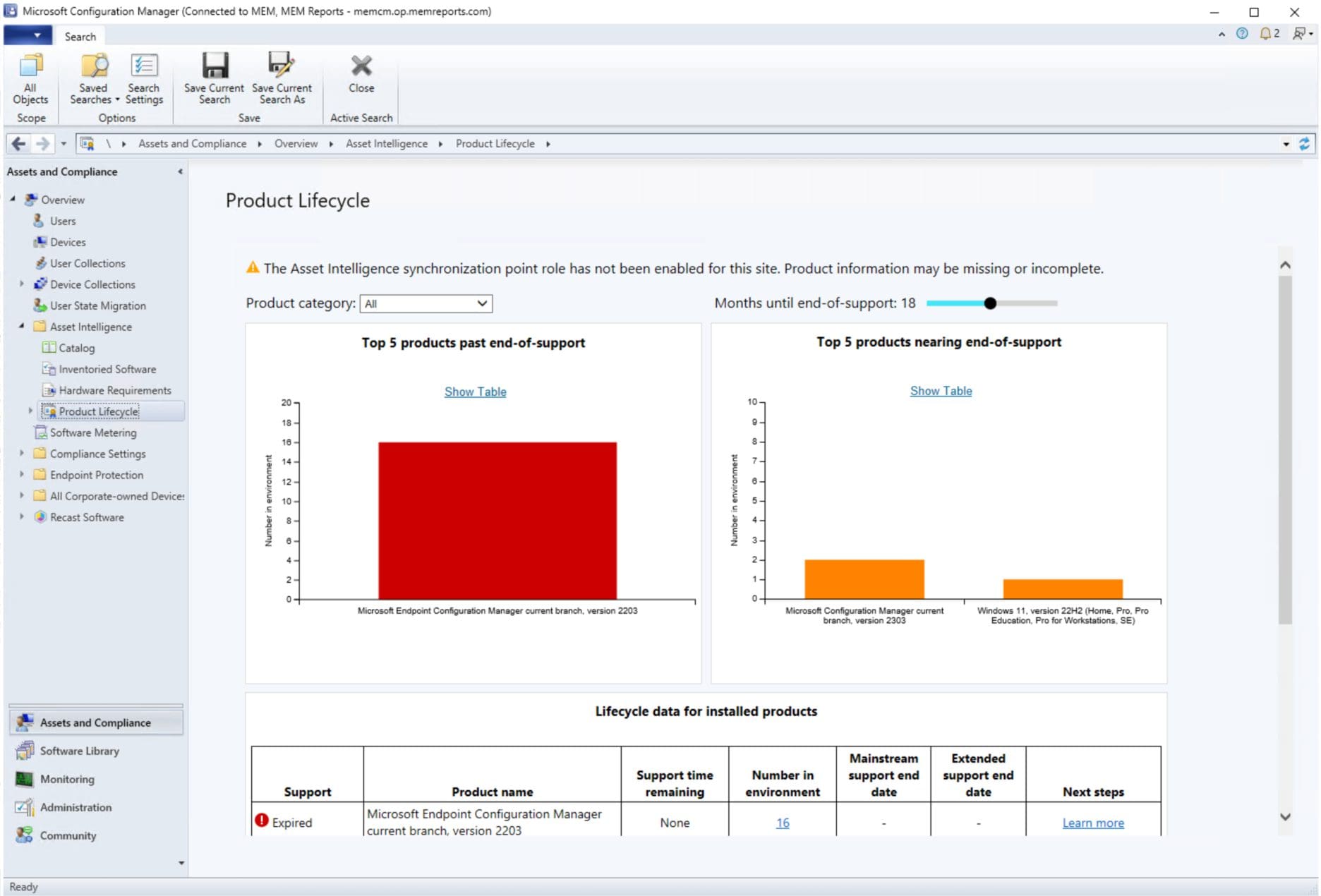

ConfigMgr Product Lifecycle dashboard BTW, ConfigMgr Product Lifecycle set is one of my favorite report sets within ConfigMgr.

Back story

One of the custom dashboards sets that I leverage uses the ConfigMgr SQL views to give a different layout that the console dashboard. So, they are seeing different results from the query then I’m seeing. To help them I agreed to track down how the data is imported in ConfigMgr database. Now it turns out that I’m mostly right. The report set that I’m thing about does not in fact use the ConfigMgr Product Lifecycle XML, but instead it used the WindowsServicingStates.xml, which is part of the exact same process. So let find it within the logs.

Hman.log

WindowsServicingStates.xml listed within the hman.log. Along with ConfigMgr.AdminUIContent.AUC and two Lifecycle stored procedures listed as excuted

Working backward I can see within hman.log that the WindowsServicingStates.xml is extracted from ConfigMgr.AdminUIContent.AUC. As shown by the pink highlighted line. Then ~20 lines later we can see the SQL stored procedure for Lifecycle getting to execute and importing the XML into ConfigMgr database. I can only assume it is round this point that it is importing the XML to ConfigMgr as I didn’t find any useful log lines. Look at the date and time, it was within the last 24 hours that this process happened. Looking higher in the logs, I’m not seeing the download process happening at all for ConfigMgr.AdminUIContent.AUC. Time to dig deeper.

Dmpdownloader.log

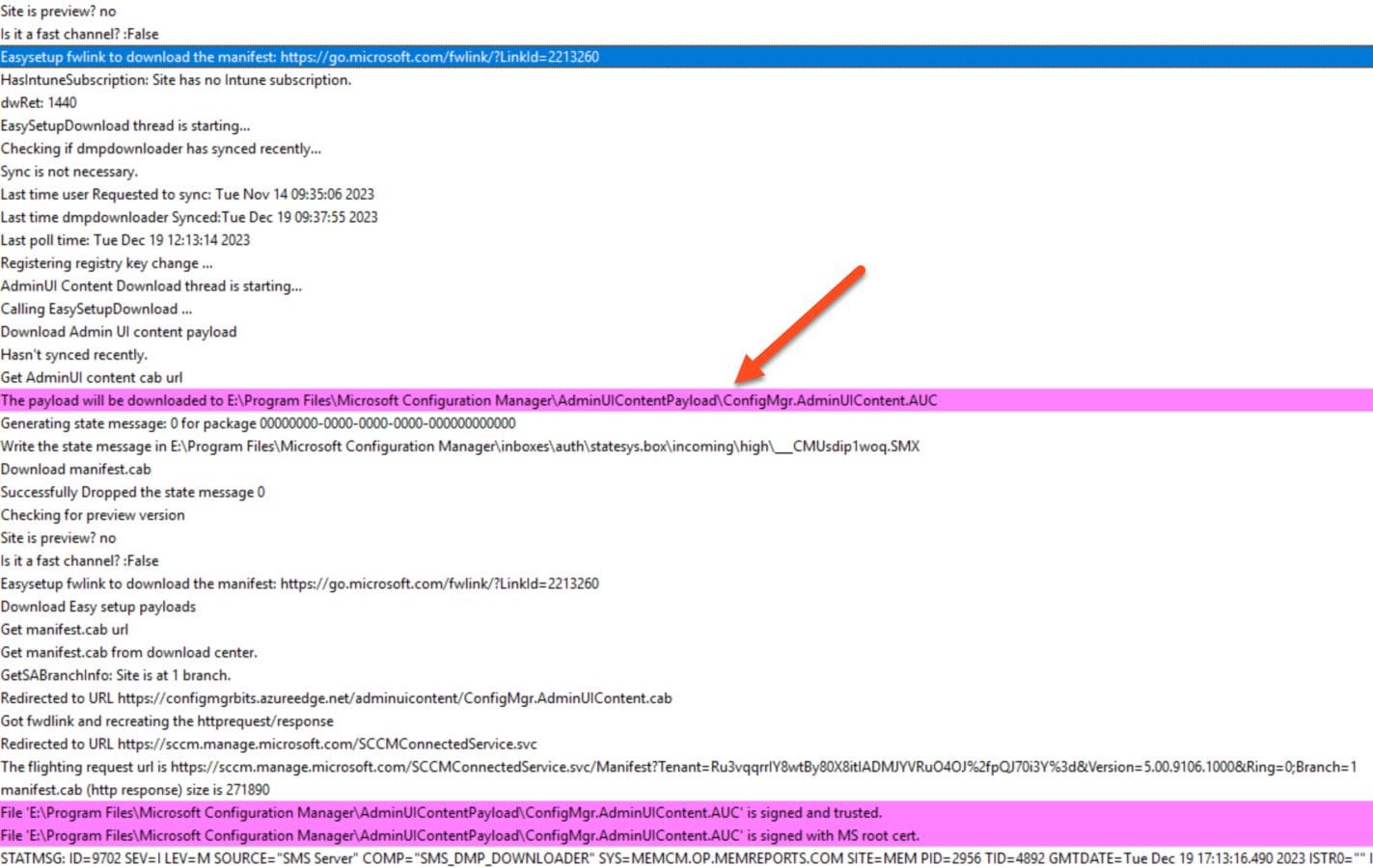

ConfigMgr.AdminUIContent.AUC being downloaded within the Dmpdownloader.log

It didn’t take that much longer to determine that Dmpdownloader.log was the log file that shows ConfigMgr.AdminUIContent.AUC being downloaded. Once the log was loaded into CMtrace, I search from the bottom of the file. We can see that the payload will be saved as ConfigMgr.AdminUIContent.AUC (orange line). All of this is to say this is downloaded by ConfigMgr during it normal tasks when it checks for updates.

Great we have track down what updates the ConfigMgr data for the v_WindowsServicingStates SQL view, which is used within the query for the custom dashboard. Now they can review their environment to determine why they are not seeing the same results are me.

v_WindowsServicingStates

I thought as I write this article, I should at least include a simple query leveraging this SQL view. So here is one that will Give you a list of your device and support statement.

Select
	R.Netbios_Name0 as 'Device',
	OS.Caption0 as 'OS',
	CASE WSS.State
		WHEN '1' THEN 'Release Ready'
		WHEN '2' THEN 'Supported'
		WHEN '3' THEN 'Expires Soon'
		WHEN '4' THEN 'End of Support'
		Else 'Unknonw'
	End as 'State',
	isnull(WSLN.Value,'n/a') As 'Short Name'
from
	dbo.v_R_System as R
	join dbo.v_GS_OPERATING_SYSTEM as OS on R.ResourceID = OS.ResourceID
	left outer join dbo.v_WindowsServicingStates WSS on R.OSBranch01 = WSS.Branch and R.Build01 = WSS.Build
	left outer join dbo.fn_GetWindowsServicingLocalizedNames() WSLN on WSLN.Name = WSS.Name

How Does ConfigMgr Product Lifecycle get Updated? Video

Below it the associated video for this blog, it will show the step I took along with some extra details.

If you have any questions about How Does ConfigMgr Product Lifecycle get Updated? Please feel free to contact me @GarthMJ Please also subscribe to my YouTube channel and newsletter.
